Steam Boiler

Name: Steam Boiler
Brand: THERMAL ENGITECH PVT. LTD.
Price: 1200000.0 INR
Availability: InStock

Price 1200000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Steam Boiler Specification

Fuel Type
Coal, Wood, Diesel, Gas

Fuel Consumption
Depending on fuel and usage; typically 25-150 kg/hr

Heat Efficiency
78% - 83%

Capacity
1000 kg/hr to 5000 kg/hr

Life Span
15-20 Years

Style
Horizontal

Condition
New

Output
Saturated Steam

Pressure
10.54 kg/cm2 (g) / 150 PSI

Temperature
Up to 185C

Voltage
415 V

Part Type
Boiler Unit

Dimension (L*W*H)
3400 mm x 1900 mm x 2300 mm

Function
Generate Steam for Industrial Applications

Automation Grade
Semi-Automatic / Manual

Color
Blue or Customized

Water Feeding Pump
Centrifugal Type

Heating Surface Area
45-230 sq.m.

Safety Valve Type
Spring Loaded

Usage/Application
Textile, Food, Chemical, Pharmaceutical Industries

Surface Finish
Paint Coated

Mounting Type
Floor Mounted

Drum Thickness
16 mm

Chimney Height
21 Feet

Steam Boiler Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
3

About Steam Boiler

EPL is one of the leading Manufacturers/ Suppliers/ Exporters of Steam Boilers & other Heating Equipments. It is a professionally managed organization that deals as the Manufacturer, Exporter and Supplier of Steam Boilers & other Heating Equipment like Steam Boiler, Hot Water Generator, Thermic Fluid Heater and Pressure Reducing Valve / Station.

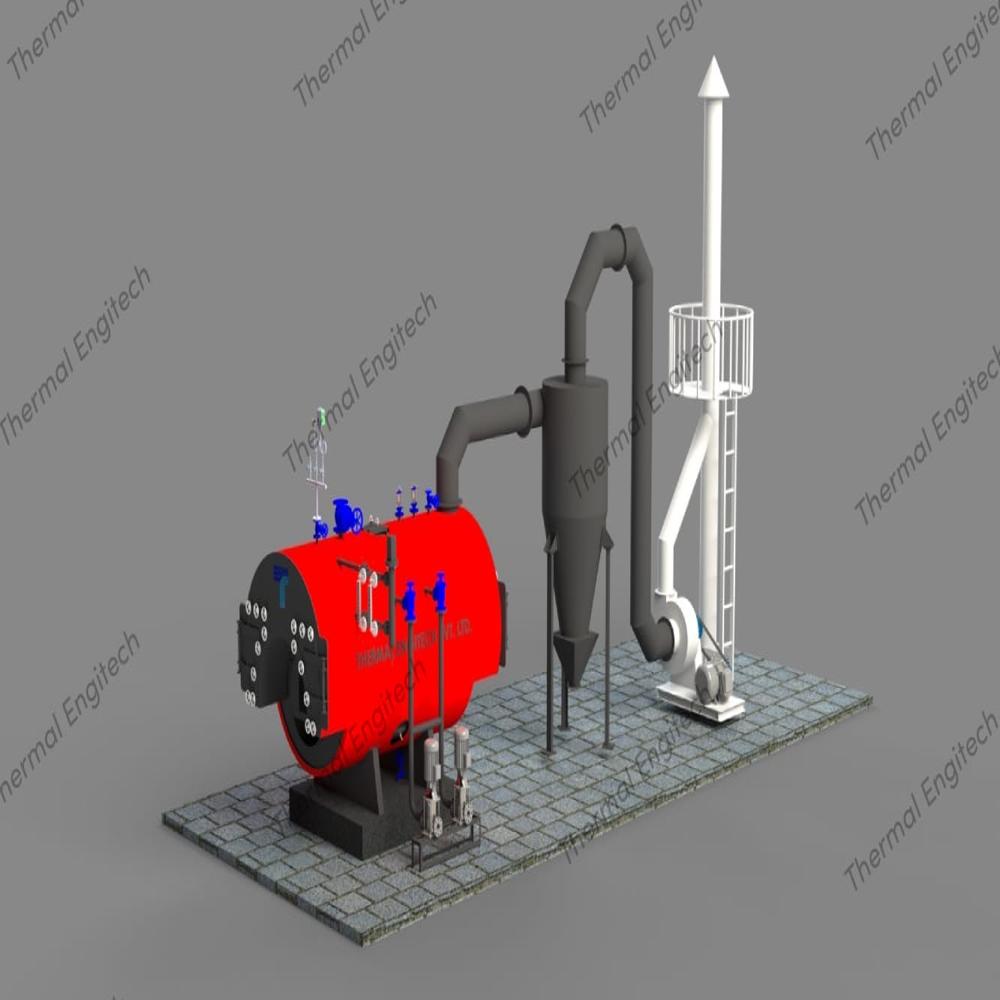

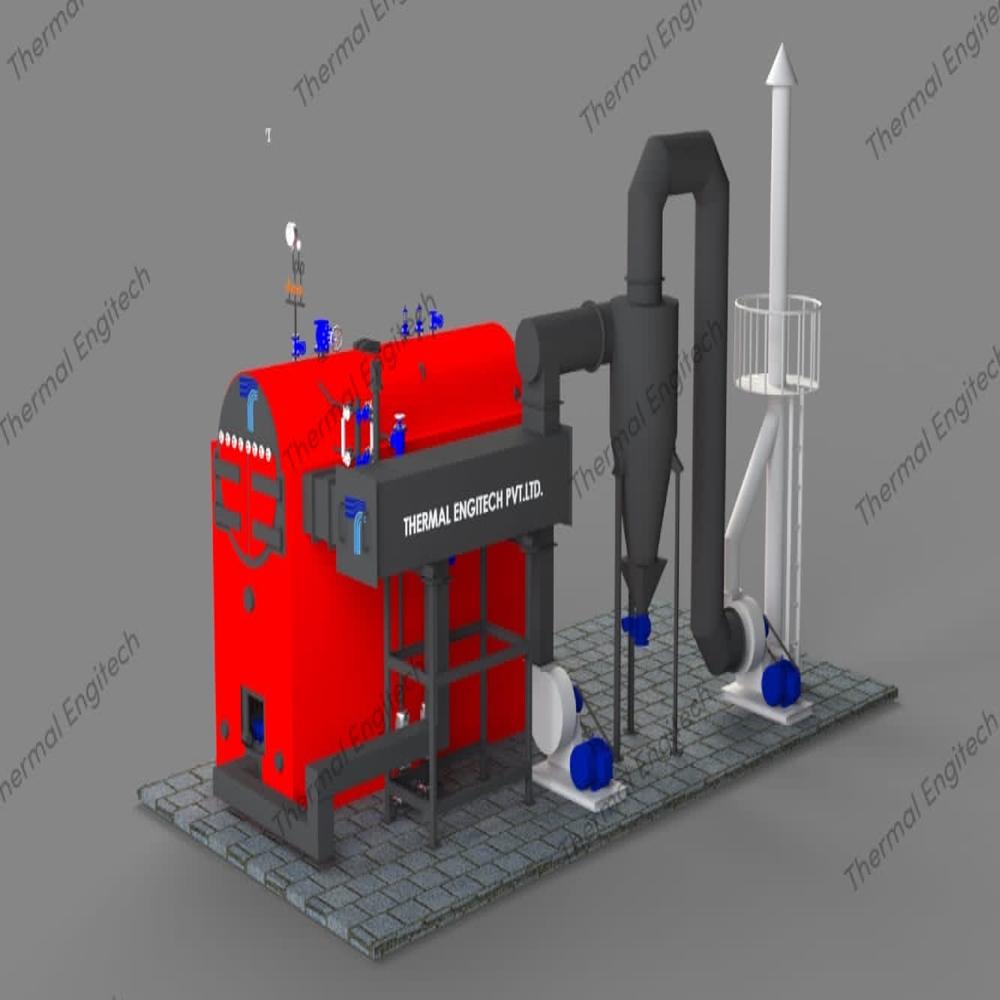

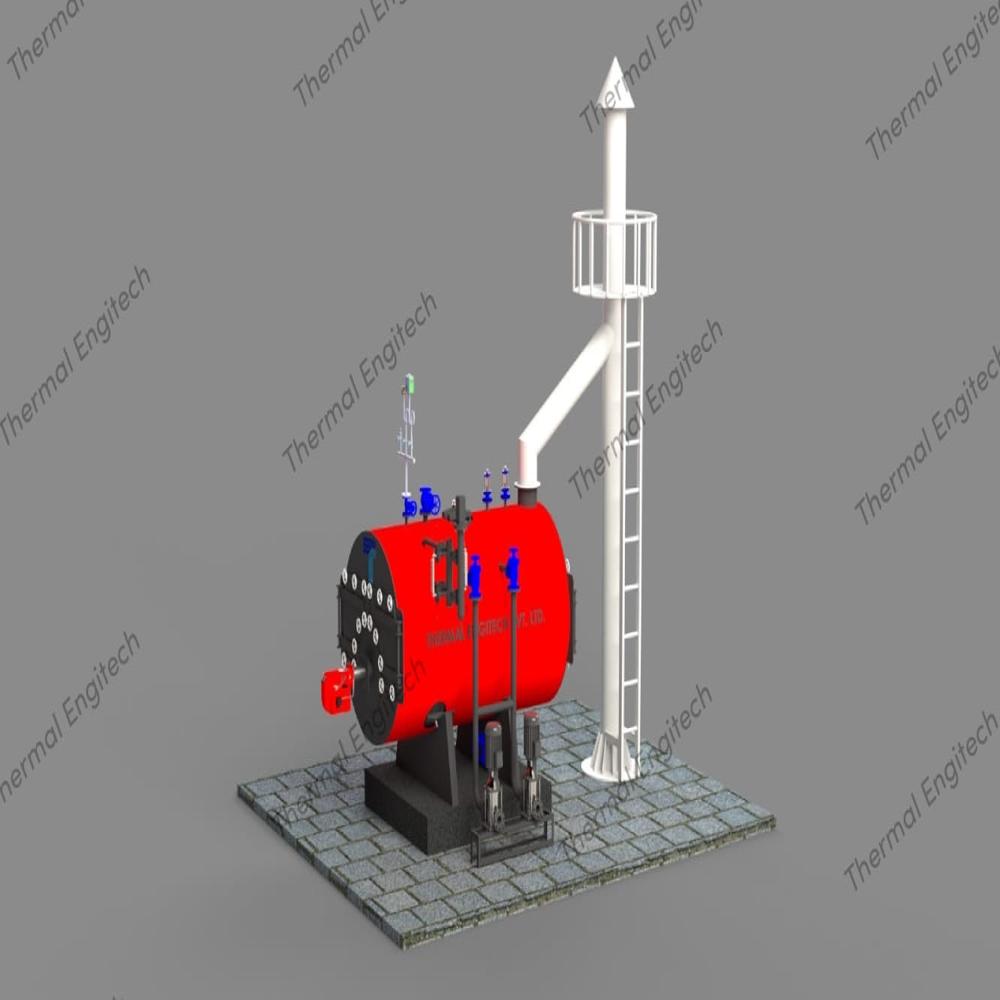

Thermal-Max Steam Boiler Smoke tube type system boiler with three pass fully wet back design

Salient Features:

Factory-assembled horizontal package boiler.
Less site work & quick commissioning
Suitable for coal, wood & briquetted fuel.
Manual firing - less complexity.
Large integral furnace - minimum heat loss.
High turn-down ration.
End to end visibility of tubes.
Easy access for inspection & cleaning.
Quick and easy ash removal.
Low excess air burners, imported / indigenous.

Fuels:
Wood, Coal, Briquettes, Sawdust, Biomass, Wood Chips, Wood Logs, Biomass Pellets, Bailed Bagasse

Applications:
Industrial applications like Dyes, Drugs & Pharmaceuticals, Chemicals, Food Industry, Paper & Plywood, Agro based Industries, Rubber Industry and other process industries.

Engineered for Versatility and Efficiency

With a capacity ranging from 1000 kg/hr to 5000 kg/hr and a substantial heating surface area of 45-230 sq.m., this steam boiler ensures consistent performance for diverse industrial processes. Supported by a centrifugal pump and spring-loaded safety valves, it delivers safety and reliability while achieving a thermal efficiency between 78% and 83%.

Built for Durability and Customization

Constructed from high-quality materials and coated with a durable paint finish, this horizontal boiler features a 16 mm thick drum and a customizable color. Its 21-foot chimney and thoughtfully designed dimensions offer flexibility in installation, while the semi-automatic/manual control enables user-friendly operation.

FAQ's of Steam Boiler:

Q: How is the water supplied to the steam boiler?

A: The boiler uses a centrifugal-type water feeding pump to ensure a consistent and reliable supply of water to the system, supporting efficient steam generation for your industrial processes.

Q: What industries commonly use this steam boiler model?

A: It is ideal for various industries including textile, food, chemical, and pharmaceutical sectors where large volumes of saturated steam are required for different operational needs.

Q: When should maintenance be performed on the boiler?

A: Routine maintenance is recommended at regular intervals, such as monthly inspections and annual comprehensive servicing, to ensure optimal performance and to extend its 15-20 year expected lifespan.

Q: Where can the boiler be installed?

A: This floor-mounted, horizontally styled boiler is best installed in dedicated industrial boiler rooms or utility areas with sufficient space and proper ventilation, considering its dimensions (3400 mm x 1900 mm x 2300 mm) and a 21-foot chimney requirement.

Q: What is the process for generating steam in this unit?

A: Once water is pumped into the boiler drum, the chosen fuel (coal, wood, diesel, or gas) is combusted to heat the water. The resulting saturated steam is then distributed to the industrial application as required by the operation.

Q: How does the semi-automatic or manual control system benefit users?

A: The semi-automatic/manual control system allows operators to adjust boiler functions according to specific process needs, providing both convenience and adaptability in different operational contexts.

Q: What are the benefits of using this steam boiler?

A: Benefits include a high heat transfer efficiency (78%-83%), flexibility with fuel types, long service life, robust safety features, and dependable steam output-essential for demanding industrial environments.
